Data Sampling Techniques and Their Relation to Six Sigma

Collecting and analyzing data is the backbone of Six Sigma. But working with large populations can be slow, expensive, and inefficient. That’s why Six Sigma teams use data sampling—a method of selecting a small, representative subset of data to gain insights about the whole process.

In this comprehensive guide, we’ll explore different data sampling techniques, when to use them, and how they apply to Six Sigma projects. We’ll also explain the difference between a population and a sample, and break sampling into two major categories: probability and non-probability.

What Is Data Sampling?

Data sampling is the process of selecting a portion of data from a larger dataset, or population, for analysis. The goal is to draw conclusions about the entire population using only a small, manageable portion.

In Six Sigma, sampling is critical for:

• Estimating process performance
• Identifying causes of variation
• Conducting hypothesis tests
• Monitoring improvements over time

By sampling correctly, teams can make data-driven decisions with less time and cost.

Understanding Population vs. Sample

Before diving into sampling methods, it’s important to understand the difference between population and sample.

Term	Definition	Example
Population	The entire group of items or data points under study	All bolts produced in a month
Sample	A subset of the population selected for analysis	200 bolts tested for defects

Why Not Use the Whole Population?

You might wonder why we don’t just measure everything. In most cases, it’s:

• Too expensive
• Too time-consuming
• Logistically difficult

That’s why sampling is essential. It gives you a snapshot of the population that, if done right, is statistically reliable.

Importance of Data Sampling in Six Sigma

In Six Sigma projects, data sampling supports the DMAIC framework and ensures efficient problem-solving.

Benefit	Description
Saves time	Fewer data points mean quicker analysis
Reduces costs	Less measurement effort lowers operational costs
Enables hypothesis testing	Samples are used for statistical tests
Helps monitor performance	Ongoing sampling supports control charts
Identifies variation	Stratified and systematic samples expose inconsistencies

Without accurate sampling, Six Sigma teams risk making flawed decisions based on incomplete or biased data.

Types of Data in Sampling

Sampling technique depends on the type of data collected.

Data Type	Description	Examples
Continuous Data	Measurable quantities	Weight, temperature, pressure
Discrete Data	Countable items	Number of defects, missing items

Continuous data typically requires fewer samples to reach reliable conclusions. Discrete data may require larger samples for statistical accuracy.

Categories of Data Sampling Techniques

Sampling methods are classified into two major categories:

1. Probability Sampling – Each member of the population has a known, non-zero chance of being selected.
2. Non-Probability Sampling – Not all members have a known or equal chance of being selected.

Let’s explore both categories in detail.

Probability Sampling Techniques

Probability sampling provides unbiased, statistically sound data. It’s the preferred approach in Six Sigma projects, especially during the Measure and Analyze phases.

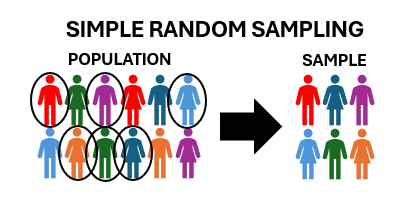

1. Simple Random Sampling

Each item has an equal chance of being chosen. Selection is purely by chance.

Example: Randomly select 150 products from a batch of 5,000 using a random number generator.

Pros	Cons
Easy to implement	May not reflect subgroup differences
Minimizes selection bias	Needs a full population list

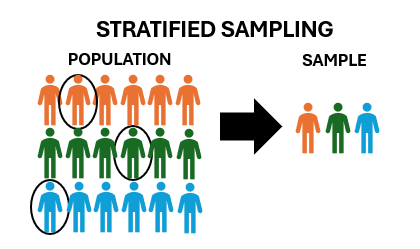

2. Stratified Sampling

The population is divided into subgroups (strata), and samples are taken from each group.

Example: Divide factory staff into departments (Production, QA, Maintenance) and randomly select 20 people from each.

Pros	Cons
Ensures representation across groups	Requires knowledge of group boundaries
Reduces sampling error	More complex to manage

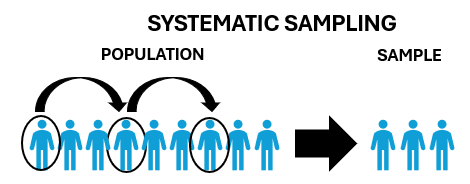

3. Systematic Sampling

Selects every nth item from an ordered list.

Formula:​

Where:

• N = population size
• n = desired sample size
• k = sampling interval

Example: Inspect every 10th item off a production line.

Pros	Cons
Quick and simple	Can be biased if there’s a hidden pattern
Works well in continuous processes	Less effective for small datasets

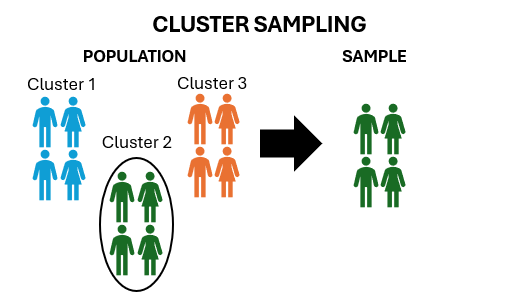

4. Cluster Sampling

Divide the population into clusters, then randomly select entire clusters for sampling.

Example: Out of 10 warehouse locations, randomly select 3 for inspection.

Pros	Cons
Cost-effective for wide geographical spread	Less precise than stratified sampling
Reduces travel and coordination efforts	Higher sampling error risk

Non-Probability Sampling Techniques

Non-probability sampling doesn’t guarantee that every item has a chance to be selected. It’s less rigorous but useful in early stages or when time and access are limited.

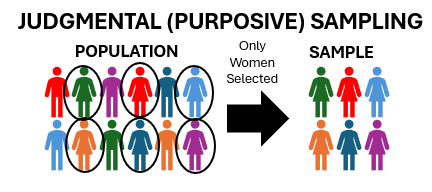

1. Judgmental (Purposive) Sampling

Relies on expert judgment to select “important” data points.

Example: A Six Sigma Black Belt interviews veteran operators about recurring process issues.

Pros	Cons
Taps into expert knowledge	Subjective and prone to bias
Quick for exploratory studies	Not statistically generalizable

2. Convenience Sampling

Samples are taken from the easiest sources.

Example: Analyze the most recent 3 days of production data because it’s readily available.

Pros	Cons
Fast and inexpensive	High risk of bias
Good for pilot studies	Results may not reflect full process behavior

3. Quota Sampling

The sample includes specific numbers of people or items from each subgroup but without random selection.

Example: Choose 50 defective units from each shift without randomizing.

Pros	Cons
Ensures subgroup presence	Still non-random
Easier than stratified sampling	May introduce unconscious bias

Sampling Techniques Comparison Table

Technique	Category	Best Use Case	Drawbacks
Simple Random	Probability	Homogenous populations	May miss subgroups
Stratified	Probability	Analyze subgroup differences	Requires population info
Systematic	Probability	Continuous operations	Can bias if there’s a pattern
Cluster	Probability	Large or remote populations	Less precise
Judgmental	Non-Probability	Expert insights or rare events	Subjective, non-generalizable
Convenience	Non-Probability	Quick checks	Unreliable results
Quota	Non-Probability	Ensure subgroup coverage	Not truly random

How Sampling Fits into the DMAIC Framework

Sampling supports every phase of DMAIC. Let’s look at how it applies across Define, Measure, Analyze, Improve, and Control.

DMAIC Phase	Sampling Application
Define	Identify data sources and sampling needs
Measure	Collect representative samples from processes
Analyze	Use samples for root cause and statistical testing
Improve	Sample before and after changes to validate impact
Control	Ongoing sampling feeds control charts and audits

Example: Sampling in a DMAIC Project

Problem: Increase first-time yield in a coating process.

1. Define: Select product line with most rework.
2. Measure: Use systematic sampling—inspect every 20th unit.
3. Analyze: Run hypothesis test on defect rate vs. shift (use stratified sampling).
4. Improve: Pilot a new spray nozzle, sample 100 units post-change.
5. Control: Apply control charts using weekly samples.

This approach ensures data drives decisions at each phase.

Calculating Sample Size

Choosing the right sample size is crucial. Too small, and results are unreliable. Too large, and it wastes time and resources.

For Continuous Data:

Where:

• Z = Z-score (1.96 for 95% confidence)
• σ = estimated standard deviation
• E = margin of error

For Proportions (Defects):

Where:

• Z = Z-score (1.96 for 95% confidence)
• p = estimated defect rate
• E = desired margin of error

Sample Size Example:

Estimate defect rate with 95% confidence, 5% error, and 10% defects:

You’d need at least 139 samples for valid results.

Sampling and Control Charts

In Six Sigma’s Control phase, sampling feeds control charts to monitor process stability.

Chart Type	Data Type	Sampling Approach
X-bar/R	Continuous	Sample 4-5 items per subgroup
P Chart	Attribute	Random samples from large lots
C/U Charts	Attribute (counts)	Fixed-size inspection samples

Best Practice: Keep sampling size and frequency consistent to detect true process signals.

Sampling Risks and How to Avoid Them

Improper sampling leads to misleading results and wasted resources. Watch for these common risks:

Risk	Description	Prevention
Bias	Sample doesn’t reflect population	Use random or stratified sampling
Undercoverage	Excludes key subgroups	Identify all strata beforehand
Overgeneralization	Results assumed valid for whole process	Use probability sampling
Inconsistent sampling	Different methods used across periods	Standardize the plan

Best Practices for Sampling in Six Sigma

To ensure valid, actionable results, follow these best practices:

1. Define your population clearly
   Include boundaries like timeframes, product lines, or shifts.
2. Choose the right technique
   Match method to objective and data type.
3. Document your sampling plan
   Include method, size, frequency, and rationale.
4. Use statistical software
   Tools like Minitab or JMP help calculate sample size and interpret results.
5. Train your team
   Everyone collecting or analyzing samples should understand the plan.

Conclusion

Data sampling is a cornerstone of Six Sigma. It saves time, reduces costs, and provides the data needed to drive meaningful improvements. Whether you use probability sampling for statistical analysis or non-probability sampling for quick feedback, the goal is the same: gain accurate insight with minimal effort.

By choosing the right sampling technique, calculating the correct sample size, and integrating your approach into the DMAIC process, you can ensure success in any Six Sigma project.
