Design of Experiments delivers value only when teams interpret the results correctly. Data alone does not improve a process. Insight does. Therefore, practitioners must be well-versed in interpreting DOE results so they can understand effects, interactions, and visual summaries. Otherwise, DOE becomes an academic exercise.
This guide explains how to interpret DOE results step by step. It focuses on main effects, interaction plots, and Pareto charts of effects. Each concept includes practical guidance and examples appear throughout. This will help you turn DOE output into confident decisions.
- Why Interpreting DOE Results Matters
- Where Interpretation Fits in the DMAIC Roadmap
- Understanding Effects in DOE
- Interpreting the Direction of Effects
- Magnitude Versus Significance
- Main Effects Plots Explained
- Example: Main Effects in a Coating Process
- Why Interactions Matter in DOE
- What Is an Interaction?
- Interaction Plots Explained
- Example: Interaction in an Injection Molding Process
- When Interactions Override Main Effects
- Two-Factor Interactions Versus Higher-Order Interactions
- Pareto of Effects Explained
- How to Read a Pareto Chart of Effects
- Example: Pareto Chart in a Packaging DOE
- Combining Effects, Interaction Plots, and Pareto Charts
- Practical Workflow for Interpreting DOE Results
- Common Mistakes in DOE Interpretation
- Linking DOE Interpretation to Process Knowledge
- Using DOE Results to Select Optimal Settings
- Example: Choosing Settings After Interpretation
- Communicating DOE Results to Stakeholders
- DOE Interpretation in Different Industries
- Validating DOE Conclusions
- Control Implications of DOE Interpretation
- Summary of Key Interpretation Principles
- Conclusion
Why Interpreting DOE Results Matters
DOE helps teams learn faster. It reduces trial and error. It also reveals cause-and-effect relationships. However, the analysis phase determines success.
Interpreting DOE results poorly leads to wrong conclusions. Teams may adjust the wrong factors. They may also miss key interactions. As a result, performance may degrade instead of improve.
Strong interpretation avoids these risks. It helps teams:
- Identify critical process inputs
- Separate signal from noise
- Focus improvement efforts
- Communicate results clearly
Therefore, learning how to read DOE output becomes essential for Six Sigma practitioners.
Where Interpretation Fits in the DMAIC Roadmap
DOE usually appears in the Analyze or Improve phase of DMAIC. At that point, teams already defined the problem. They also collected reliable data. Now they need answers.
Interpretation connects analysis to action. It bridges statistics and operations. Without that bridge, improvement stalls.
The table below shows how DOE interpretation supports DMAIC.
| DMAIC Phase | Role of DOE Interpretation |
|---|---|
| Define | Confirms which inputs matter to customers |
| Measure | Verifies measurement sensitivity |
| Analyze | Identifies significant factors and interactions |
| Improve | Guides factor settings and optimization |
| Control | Supports control plan priorities |
Because of this linkage, DOE interpretation deserves careful attention.
Understanding Effects in DOE
Effects form the foundation of DOE interpretation. They describe how much a factor changes the response. In simple terms, effects answer one question. What happens when you change this factor?
What Is a Main Effect?
A main effect measures the average change in the response when a factor moves from low to high. It ignores other factors for the moment.
For example, consider a temperature factor with two levels. The main effect equals the difference in average output between low and high temperature.
That simplicity makes main effects powerful. However, it also creates risk. Ignoring interactions may mislead teams. Therefore, main effects require context.
Calculating Main Effects Conceptually
Most software calculates effects automatically. Still, understanding the logic helps interpretation.
The steps below explain the idea:
- Separate runs by factor level
- Calculate the average response at each level
- Subtract the low-level average from the high-level average
The result shows direction and magnitude. A positive effect increases the response. A negative effect reduces it.
Interpreting the Direction of Effects
Effect direction matters. It tells teams how to adjust the process.
- Positive effect means higher factor levels increase the response
- Negative effect means higher factor levels decrease the response
However, interpretation depends on the goal. If the response represents defects, a negative effect may be desirable. If the response represents strength, a positive effect may help.
Therefore, always link effect direction to the problem statement.
Magnitude Versus Significance
Large effects attract attention. Yet size alone does not confirm importance. Statistical significance matters too.
Significance depends on variability and sample size. A small effect may still matter if noise stays low. Conversely, a large effect may appear insignificant if variability dominates.
Hence, teams must consider both magnitude and significance together.
The table below highlights the difference.
| Aspect | What It Tells You |
|---|---|
| Effect size | Practical impact |
| Statistical significance | Confidence the effect is real |
| Direction | How to adjust the factor |
Balanced interpretation requires all three.
Main Effects Plots Explained
Main effects plots visualize effects clearly. They show average response at each factor level. Lines connect the averages.
A flat line indicates little effect. A steep line signals a strong effect. The slope direction shows whether the response increases or decreases.
These plots help teams see patterns quickly. They also support communication with non-statistical audiences.
How to Read a Main Effects Plot
Follow a simple approach:
- Look at the slope
- Compare slopes across factors
- Note direction and steepness
Factors with steep slopes deserve attention. Flat lines usually indicate minor influence.
However, caution remains necessary. Interactions may hide behind flat averages.
Example: Main Effects in a Coating Process
Consider a coating thickness DOE with three factors:
- Temperature
- Line speed
- Coating pressure
The response measures average thickness.
The main effects plot shows a steep positive slope for pressure. Temperature shows a mild effect. Line speed appears flat.
At first glance, pressure looks critical. That conclusion may hold. Yet interactions still need review.
Why Interactions Matter in DOE
Interactions explain situations where one factor changes the effect of another. They reveal combined behavior. In many processes, interactions dominate performance.
Ignoring interactions creates risk. Teams may optimize one factor while unknowingly worsening another.
Therefore, interaction analysis becomes essential, especially in multifactor experiments.
What Is an Interaction?
An interaction occurs when the effect of one factor depends on the level of another factor.
For example:
- Temperature increases strength at low pressure
- Temperature decreases strength at high pressure
In this case, temperature has no single effect. Pressure changes everything.
Interactions like this appear often in chemical, mechanical, and manufacturing systems.
Interaction Plots Explained

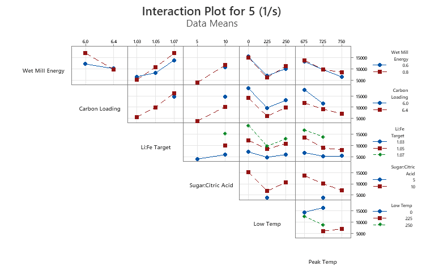

Interaction plots visualize these relationships. They plot one factor on the x-axis. Separate lines represent levels of another factor.
Parallel lines indicate no interaction. Crossing or diverging lines indicate interaction.
This visual simplicity makes interaction plots extremely powerful.
How to Read an Interaction Plot
Use the following checklist:
- Check if lines remain parallel
- Look for crossings or widening gaps
- Compare slopes between lines
Strong interactions often show dramatic crossings. Subtle interactions may show smaller deviations.
Even small deviations may matter in sensitive processes.
Example: Interaction in an Injection Molding Process
Imagine a DOE studying:
- Melt temperature
- Injection speed
The response measures part weight.
At low speed, higher temperature increases weight. At high speed, higher temperature decreases weight.
The interaction plot shows crossing lines. That crossing signals a strong interaction.
As a result, teams must choose temperature and speed together. Optimizing one alone will fail.
When Interactions Override Main Effects
Sometimes interactions dominate main effects. In those cases, main effects plots mislead.
For example, averages may cancel out. Temperature may look flat overall. Yet strong interactions exist underneath.
Therefore, always review interaction plots before drawing conclusions.
A good rule helps here. Never interpret main effects without checking interactions.
Two-Factor Interactions Versus Higher-Order Interactions
Most DOE focuses on two-factor interactions. They remain easier to interpret and control.
Higher-order interactions exist but appear less often. Three-factor interactions may occur in complex systems. However, they complicate interpretation and implementation.
In practice, teams often:
- Focus on main effects
- Investigate key two-factor interactions
- Avoid chasing higher-order noise
This approach balances insight and practicality.
Pareto of Effects Explained
The Pareto chart of effects ranks factors and interactions by magnitude. It helps teams prioritize quickly.
Bars represent absolute effect sizes. A reference line often shows statistical significance. Effects above the line matter statistically.
Pareto charts support the 80/20 mindset. A few factors usually drive most of the variation.
How to Read a Pareto Chart of Effects
Follow these steps:
- Identify the tallest bars
- Check which bars cross the significance line
- Note whether bars represent main effects or interactions
Main effects often dominate. Yet interactions may appear near the top.
Use the chart as a prioritization tool, not a decision in isolation.
Example: Pareto Chart in a Packaging DOE
A packaging DOE studies:
- Seal temperature
- Dwell time
- Pressure
The Pareto chart shows:
- Seal temperature as the largest effect
- Temperature × pressure interaction as second
- Dwell time below significance
This result suggests focusing on temperature first. However, teams must still consider the interaction when adjusting pressure.
Combining Effects, Interaction Plots, and Pareto Charts
Each tool serves a purpose. Together, they form a complete picture.
- Main effects plots show direction
- Interaction plots show dependency
- Pareto charts show priority
Using only one creates blind spots. Using all three builds confidence.
The table below summarizes their roles.
| Tool | Primary Purpose |
|---|---|
| Main effects plot | Visualize average factor impact |
| Interaction plot | Reveal combined factor behavior |
| Pareto of effects | Rank importance and significance |
Strong DOE interpretation always combines these views.
Practical Workflow for Interpreting DOE Results
A structured workflow prevents mistakes. It also saves time.
Consider the following sequence:
- Review Pareto of effects
- Identify significant main effects and interactions
- Examine main effects plots for direction
- Examine interaction plots for dependency
- Validate findings with process knowledge
This order emphasizes priority first. Visual detail follows naturally.
Common Mistakes in DOE Interpretation
Even experienced practitioners make errors. Awareness helps avoid them.
Ignoring Interactions
Teams often jump straight to main effects. That shortcut creates risk. Always check interactions first.
Overreacting to Insignificant Effects
Statistical noise appears convincing sometimes. Significance tests help filter it out.
Forgetting Practical Significance
A statistically significant effect may still be too small to matter. Always ask whether the change impacts customers or cost.
Relying Only on Software Output
Software, such as Minitab and JMP, produces numbers. Judgment produces insight. Combine both.
Linking DOE Interpretation to Process Knowledge
Statistics never replace process understanding. They complement it.
When interpretation conflicts with engineering intuition, pause. Investigate assumptions. Check data quality. Review factor ranges.
Often, the conflict reveals deeper insight. Perhaps the process behaves differently than expected.
Therefore, engage subject matter experts during interpretation.
Using DOE Results to Select Optimal Settings
Once interpretation ends, improvement begins.
Teams use effects and interactions to choose factor settings. The goal may involve maximizing, minimizing, or targeting a response.
When interactions exist, optimal settings often depend on trade-offs. Contour plots or response surface models may help next.
Still, correct interpretation sets the foundation.
Example: Choosing Settings After Interpretation
A DOE identifies:
- Temperature has a positive effect
- Speed has a negative effect
- Temperature × speed interaction exists
The team wants to maximize yield.
They choose high temperature and moderate speed. That choice balances the interaction while preserving gains.
Without proper interpretation, they might have chosen extreme settings instead.
Communicating DOE Results to Stakeholders
Clear communication matters. Not everyone speaks statistics.
Visuals help here. Main effects plots and interaction plots tell a story. Pareto charts show priorities quickly.
When presenting results:
- Focus on practical implications
- Avoid statistical jargon
- Link findings to business goals
Strong interpretation simplifies communication.
DOE Interpretation in Different Industries
Interpretation principles stay consistent. Applications vary.
Manufacturing
Teams often focus on yield, defects, and cycle time. Interactions frequently involve machine settings and material properties.
Chemical Processing
Interactions dominate. Temperature, pressure, and concentration often interact strongly.
Healthcare and Services
DOE appears less often. Still, interpretation helps optimize workflows, staffing, and scheduling.
Across industries, the same logic applies.
Validating DOE Conclusions
Interpretation does not end with charts. Validation confirms reality.
Teams may:
- Run confirmation experiments
- Pilot new settings
- Monitor performance over time
Confirmation builds confidence before full deployment.
Without validation, interpretation remains theoretical.
Control Implications of DOE Interpretation
DOE interpretation also informs control plans.
Significant factors deserve monitoring. Insignificant ones may not.
Interactions may require combined controls. For example, temperature limits may depend on speed.
Therefore, interpretation directly shapes long-term control strategies.
Summary of Key Interpretation Principles
Before closing, let’s revisit the essentials:
- Effects show average impact
- Interactions show dependency
- Pareto charts show priority
- Visuals support understanding
- Process knowledge grounds decisions
Together, these principles turn DOE data into improvement.
Conclusion
DOE remains one of the most powerful tools in Six Sigma. Yet power comes with responsibility. Interpretation determines success.
By understanding effects, reading interaction plots, and using Pareto charts wisely, teams gain clarity. They avoid false conclusions. They focus on what truly matters.
Most importantly, they turn experiments into results.
Strong interpretation does not require advanced math. It requires discipline, curiosity, and structure. With practice, it becomes second nature.
When teams master this skill, DOE stops feeling complex. Instead, it becomes a reliable guide for better decisions and stronger processes.
