PERT Chart: How to Master Project Planning

Efficient project management is essential in today’s fast-paced industries. Whether you’re managing a manufacturing process, software development cycle, or marketing campaign, delays and bottlenecks can disrupt everything. That’s where a PERT chart becomes essential. This tool helps you plan, estimate, and manage complex projects with greater accuracy.

In this comprehensive guide, you’ll learn what PERT charts are, how to build and use them, and how they support Lean and Six Sigma initiatives. We’ll explore examples, formulas, tools, and best practices to help you apply PERT in real-world situations.

What Is a PERT Chart?

PERT stands for Program Evaluation and Review Technique. It is a project management tool designed to schedule, organize, and coordinate tasks within a project. Originally developed by the U.S. Navy in the 1950s for the Polaris missile project, PERT charts have since become a staple in industries such as construction, software development, product design, and manufacturing.

At its core, a PERT chart is a network diagram. It visually represents a project’s tasks (activities), their sequence, dependencies, and estimated durations. This allows project managers to analyze timelines and identify the critical path, the longest sequence of dependent activities that determines the minimum project duration.

Key Components of a PERT Chart

To use a PERT chart effectively, it’s important to understand its basic elements:

Component	Description
Nodes	Represent milestones or events in the project. Usually shown as circles or rectangles.
Arrows	Indicate tasks (also called activities) and connect dependent milestones.
Dependencies	Show which tasks must be completed before others can start.
Time Estimates	Each task has three estimates: optimistic, pessimistic, and most likely.
Critical Path	The longest path through the network. Determines the minimum project time.
Slack Time	The amount of time a task can be delayed without delaying the project.

Each of these parts work together to give project managers a clear picture of what needs to be done, in what order, and how long it might take.

PERT Time Estimates: The 3-Point Estimation Method

Unlike traditional scheduling tools that use a single time estimate, PERT incorporates three:

1. Optimistic Time (O) – The minimum possible time if everything goes perfectly.
2. Most Likely Time (M) – The best estimate of how long the task will take under normal conditions.
3. Pessimistic Time (P) – The maximum time required if things go wrong.

These estimates are used to calculate the Expected Time (TE) for each activity using the following formula:

This weighted average gives a more realistic estimate by accounting for uncertainty and variability.

Example:

Suppose a software testing task has the following time estimates:

• O = 3 days
• M = 5 days
• P = 9 days

This expected time becomes the input for project scheduling and critical path analysis.

PERT Chart vs Gantt Chart: Key Differences

Both PERT and Gantt charts help with project planning, but they serve different functions:

Feature	PERT Chart	Gantt Chart
Focus	Task sequence and dependencies	Task duration over time
Format	Network diagram	Bar chart
Time Estimation	Three-point estimation (O, M, P)	Single time estimate
Use Case	Complex, non-repetitive projects	Simple, linear projects
Critical Path	Clearly identified	Harder to visualize
Visual Complexity	High for large projects	Easier to interpret at a glance

Most project managers use both tools together. PERT helps with the “what and when,” while Gantt helps with “how long” and “who.”

Benefits of Using PERT Charts

PERT charts offer significant advantages when managing uncertainty and complexity.

1. Clarity of Dependencies

You see how tasks relate to each other. This helps identify which tasks can run in parallel and which are dependent on previous steps.

2. Better Time Forecasting

Three-point estimation provides a realistic time expectation, factoring in best-case and worst-case scenarios.

3. Critical Path Awareness

You know which tasks must not be delayed. This helps prioritize resources and monitor crucial project stages.

4. Proactive Risk Management

By analyzing slack time, you spot where flexibility exists. This enables faster, more strategic responses to changes or delays.

5. Improved Team Communication

With a clear diagram, team members understand where they fit into the timeline. This improves accountability and coordination.

Creating a PERT Chart Step by Step

Let’s walk through how to build a PERT chart from scratch.

Step 1: List Project Activities

Break the project into discrete tasks or activities. Use a Work Breakdown Structure (WBS) to identify all work components.

Example:

A product launch might include:

• Market research
• Design
• Prototype development
• User testing
• Marketing preparation
• Launch event

Step 2: Determine Task Dependencies

Identify which tasks depend on others. For example, you cannot start prototype development until design is complete.

Step 3: Estimate Durations

Gather the three time estimates (O, M, P) for each task. Use historical data, expert judgment, or Monte Carlo simulations.

Step 4: Calculate Expected Time (TE)

Apply the PERT formula to each task.

Step 5: Draw the Network Diagram

Create nodes for each milestone. Use arrows to represent tasks and show direction based on dependencies.

Step 6: Identify the Critical Path

Add up the expected times along each path. The longest path defines the critical path and sets the minimum project duration.

Step 7: Calculate Slack Time

For non-critical tasks, subtract their earliest start time from the latest possible start time. The difference is slack.

Sample PERT Chart Example

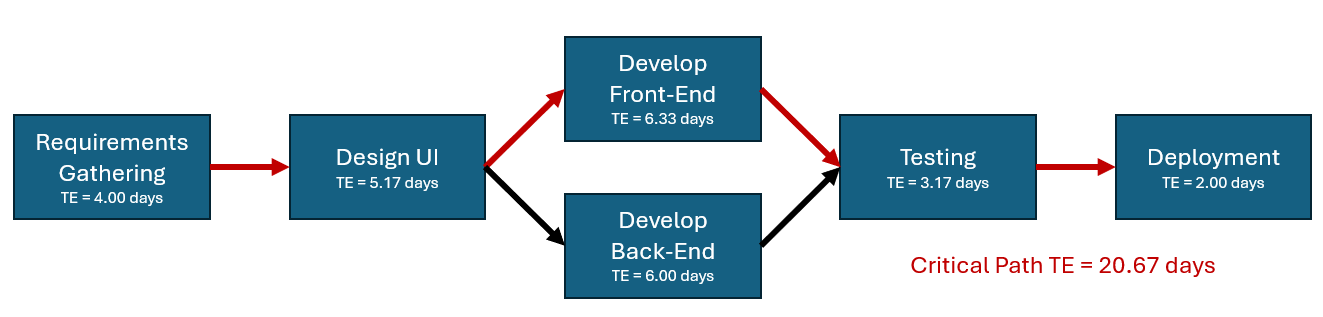

Here’s a simplified example for a website development project.

Task	Description	Predecessor	O	M	P	TE (days)
A	Requirements Gathering	None	2	4	6	4.0
B	Design UI	A	3	5	8	5.17
C	Develop Front-End	B	4	6	10	6.33
D	Develop Back-End	B	5	6	9	6.0
E	Testing	C, D	2	3	5	3.17
F	Deployment	E	1	2	3	2.0

Critical Path Analysis

Let’s evaluate possible paths:

• Path 1: A → B → C → E → F = 4 + 5.17 + 6.33 + 3.17 + 2 = 20.67 days
• Path 2: A → B → D → E → F = 4 + 5.17 + 6 + 3.17 + 2 = 20.34 days

Critical Path = Path 1 (since it has the longest duration).

PERT Chart in Six Sigma Projects

Six Sigma focuses on reducing process variation and improving quality. The DMAIC cycle (Define, Measure, Analyze, Improve, Control) guides Six Sigma projects. PERT fits especially well in the Improve and Control phases.

PERT in DMAIC Phases

DMAIC Phase	How PERT Helps
Define	Maps out project scope and structure
Measure	Supports detailed planning for data collection activities
Analyze	Highlights delays and inefficiencies in workflows
Improve	Schedules process changes and implementation plans
Control	Ensures timely execution of controls and audits

By identifying task dependencies, durations, and critical paths, PERT helps Six Sigma teams implement solutions with less risk and more control.

Integration with Lean Methodologies

Lean manufacturing focuses on eliminating waste. Poor scheduling and unclear task dependencies are forms of waste (muda). PERT helps avoid these by:

• Minimizing idle waiting time between tasks
• Improving resource allocation
• Reducing overproduction by aligning parallel tasks

Using PERT in Lean environments creates flow and reduces non-value-adding time.

Software for Building PERT Charts

Many tools support PERT chart creation:

Tool	Platform	Key Features
Microsoft Project	Desktop	Enterprise-level scheduling, critical path
Lucidchart	Web	Drag-and-drop diagrams, team sharing
SmartDraw	Desktop/Web	Templates and PERT-specific symbols
Creately	Web	Real-time collaboration
Wrike	Web	Task management with Gantt and PERT
ProjectLibre	Desktop	Free, open-source alternative

Choose a tool based on budget, team size, and integration needs.

Best Practices for PERT Chart Success

To maximize effectiveness:

• Start early. Create the PERT chart in the planning stage.
• Update regularly. Adjust time estimates and paths as needed.
• Engage stakeholders. Use cross-functional input for estimates.
• Combine with Gantt charts. Visualize both dependencies and calendar timelines.
• Monitor the critical path. Recalculate after any major change.

Limitations of PERT Charts

Despite their power, PERT charts have some downsides:

Limitation	Explanation
Estimation Bias	Reliant on subjective inputs
Complexity	Diagrams can become cluttered for large projects
Static Nature	Doesn’t adjust automatically to real-time changes
Resource Blind	Doesn’t account for resource availability

You can overcome these by combining PERT with tools like resource histograms or Agile boards.

Real-World Case Study: Manufacturing Process Improvement

A Lean Six Sigma team at a battery manufacturing plant wanted to reduce the lead time of electrode production. They used PERT to plan a process improvement initiative involving:

• Equipment upgrades
• Staff training
• Supplier qualification
• Validation testing

Each activity had high uncertainty due to technical complexity and supply chain delays. By using PERT:

• They created a reliable timeline based on three-point estimates.
• They identified the critical path: equipment delivery → installation → testing → validation.
• They allocated additional resources to critical tasks and added slack to non-critical ones.

As a result, the improvement project finished 8 days ahead of schedule, reducing lead time by 12%.

Conclusion

A PERT chart is more than just a diagram—it’s a powerful planning tool. It brings structure, visibility, and predictability to complex projects. Whether you’re managing a Lean Six Sigma initiative, launching a product, or optimizing a process, PERT enables smarter decision-making and reduces project risk.

By visualizing dependencies, estimating realistic timelines, and identifying critical paths, PERT charts help you deliver projects on time and with confidence.
