Response Surface Methodology (RSM): How to Optimize Beyond Linear Models

Response Surface Methodology (RSM) helps teams unlock deeper process insights. It goes far beyond simple linear models. It reveals curvature, identifies interactions, and builds predictive equations that point directly to the true optimum. Because of that power, organizations use RSM in manufacturing, chemistry, material science, healthcare, food processing, energy, and countless engineering applications.

You get a structured method to explore the design space. You also reduce risk, cut cost, and discover relationships that simple factorial DOE designs never uncover. This article gives you a complete guide to RSM. It covers concepts, steps, models, diagnostics, industry examples, and templates.

What Is Response Surface Methodology?

Response Surface Methodology (RSM) is a set of statistical and mathematical tools that optimize a response influenced by several factors. You start with a DOE to collect data. You then fit a second-order model. Next, you evaluate curvature and interaction patterns. Finally, you navigate the surface to find the optimum settings.

Linear models can only show straight-line relationships. RSM reveals bending, rising, plateauing, and falling responses. You see how factors work together. You also see how that relationship shifts across the design space. These insights help you tune processes with far more accuracy than one-factor studies or simple factorials.

Why Teams Use RSM Instead of Linear DOE Models

Linear models work only when the process behaves in a simple way. Most systems do not behave that way. Temperature curves, chemical reactions, and mechanical systems almost always show curvature. RSM captures that curvature with a quadratic model.

Many teams switch to RSM when linear models fail to predict the true optimum. Others shift to RSM when they see significant lack of fit. Some teams start with RSM because they want a smooth, efficient path toward global optimization.

Here are the practical benefits:

Benefit	Why It Matters
Captures curvature	Real systems rarely behave linearly
Identifies interactions	Multi-factor synergy becomes clear
Finds true optimum	You maximize output or minimize defects
Requires fewer runs than brute-force testing	Cost and time drop
Creates a predictive model	You simulate changes before running them

With these advantages, RSM delivers deeper insight and stronger decisions.

Core Elements of Response Surface Methodology

RSM includes several core components. Each one supports a step in the optimization process.

RSM Element	Description
Sequential experimentation	Move from screening → optimization
Second-order models	Capture curvature and interactions
Designed experiments	Usually Central Composite or Box-Behnken
Surface plots	Show 3D response behavior
Contour plots	Indicate optimum regions
Numerical optimization	Ridge analysis or desirability functions

You combine these elements to build a full optimization roadmap.

When You Should Use RSM

You should use RSM when:

• Curvature seems likely
• Interactions matter
• You want an optimum, not just factor significance
• A linear model shows lack of fit
• Your team wants a predictive model
• You want smooth optimization without thousands of trials

Several industries rely on RSM:

Industry	Typical RSM Problems
Chemical	Reaction yield, catalyst loading, mixing speed
Manufacturing	Coating thickness, extrusion quality, thermal profiles
Food processing	Moisture control, bake time, ingredient ratios
Pharmaceuticals	Granulation tuning, coating uniformity, dissolution
Energy	Combustion efficiency, fuel blends
Healthcare	Dosage optimization, treatment parameter tuning

RSM fits any process where multiple factors interact in nonlinear ways.

The Sequential Approach That Makes RSM Effective

RSM never starts with a quadratic model. It first screens factors. It then refines the space. Next, it fits curvature. Finally, it converges on the optimum. This sequence keeps experiments efficient and protects resources.

Step 1: Screening

When you have many factors, you need to eliminate weak ones. A factorial or fractional factorial design works well at this stage. Screening narrows the field.

Step 2: Steepest Ascent (or Descent)

After you find the critical factors, you move toward improvement. If your response must increase, you use Steepest Ascent. If it must decrease, you use Steepest Descent. This directional search guides you to the curvature region.

Step 3: Apply an RSM Design

Once you reach the curvature area, you switch to an RSM design. Common choices include:

Design	When to Use It
Central Composite Design (CCD)	Most common; flexible; supports rotatability
Box-Behnken Design (BBD)	Useful when you want fewer runs; avoids extreme vertices
D-Optimal Quadratic Designs	Works when constraints limit factor ranges

These designs give you the data needed to fit a second-order model.

Tools such as Minitab and JMP include built-in Central Composite and Box-Behnken templates, so teams can set up RSM experiments in minutes.

Step 4: Fit the Quadratic Model

You now build the core RSM model:$$Y = b_0 + \sum b_iX_i + \sum b_{ii}X_i^2 + \sum b_{ij}X_iX_j$$

This formula includes:

• Main effects
• Quadratic effects
• Interaction effects

The model reveals curvature and synergy.

Step 5: Optimize

You now follow the surface to find the best settings. You can use contour plots, surface plots, ridge analysis, or desirability optimization.

Step 6: Verify

You run confirmation trials at the predicted optimum. You then compare actual results with predicted results.

Central Composite Designs (CCD)

CCD is the workhorse of RSM. It includes factorial points, center points, and axial points. This structure gives excellent coverage of the design space.

CCD Structure

Point Type	Purpose
Factorial points	Establish linear effects
Axial (star) points	Capture curvature
Center points	Estimate experimental variation

Advantages of CCD

• Simple structure
• Highly flexible
• Supports rotatable designs
• Introduces strong data for quadratic modeling

Example of CCD

A coatings engineer wants to optimize viscosity. The team tests temperature, mixing speed, and solvent ratio. A CCD lets the team capture curvature around the blend. The optimized formula reduces scrap by 40%.

Box-Behnken Designs (BBD)

Box-Behnken Designs provide another strong RSM option. They use midpoints of factor edges and center points.

Benefits of BBD

• Fewer runs than CCD
• Avoid extreme conditions
• Good for chemical or thermal processes with safety limits

Example of BBD

A food manufacturer tunes moisture, bake time, and oven temperature. Extreme settings create burning or undercooking. A Box-Behnken design prevents these extremes and still finds the ideal combination.

The Quadratic Model: The Heart of RSM

RSM relies on second-order regression models. These models pick up curvature and interactions. You use coded factors so scale differences do not distort interpretation.

Components of the Quadratic Model

Component	Meaning
Linear term	Single-factor influence
Quadratic term	Curvature in the response
Interaction term	Combined factor impact

Interpreting the Model

Positive quadratic terms indicate upward curvature. Negative quadratic terms show downward curvature. Interaction terms reveal whether factors amplify or counteract each other.

Example of the Quadratic Model

A pharmaceutical company optimizes tablet hardness. Pressure interacts with granulation moisture. The interaction term shows that moisture stabilizes hardness at certain pressure ranges. Without RSM, this pattern stays hidden.

Building Contour and Surface Plots

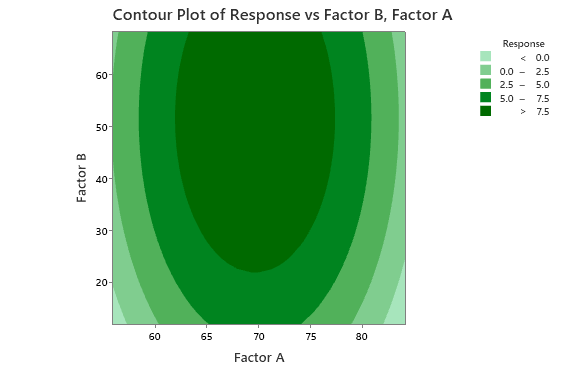

Visual tools strengthen RSM. Contour plots show lines of constant response. Surface plots show 3D shapes.

Contour Plot Insights

• Ridge lines guide you toward the optimum
• Tight curves indicate high sensitivity
• Wide curves show stability

Surface Plot Insights

• Peaks show maxima
• Valleys show minima
• Saddles indicate complex relationships

Example

An extrusion process suffers from inconsistent width. Temperature and pressure drive most variation. The contour plot points to a ridge region that stabilizes the process. This insight cuts variation by half.

Using Desirability Functions to Optimize Multiple Objectives

Many teams optimize more than one response. For example, you may want maximum strength and minimum weight or may need high yield and low emissions. You can combine these goals with desirability functions.

How Desirability Works

You convert each response into a scale from 0 to 1. You then combine those scales into a composite desirability. The optimum is the point where the composite value reaches its peak.

Desirability Types

Goal	Desirability Setup
Maximize	Scales upward toward upper target
Minimize	Scales downward toward lower target
Target	Highest at central value; drops toward edges

Example

A battery materials team balances capacity and cycle stability. Increasing one hurts the other. Desirability optimization finds the blend that balances both metrics. The final formulation boosts efficiency by 12%.

Residual Diagnostics for RSM

Strong RSM analysis always checks diagnostics. Good models show stable variation, normal residuals, and no patterns.

Key Diagnostic Tools

Diagnostic	What It Reveals
Residual plot	Constant variance
Normal plot	Normality assumption
Cook’s Distance	Influential points
Lack-of-fit test	Model adequacy
Predicted vs Actual	Prediction accuracy

Example

A plastics process shows curvature. The team fits an RSM model. The lack-of-fit test improves after adding a quadratic term. The prediction error drops by half.

Common Mistakes Teams Make with RSM

Many teams misuse RSM. Here are common pitfalls and how to avoid them.

Mistake	Why It Hurts	Fix
Starting with RSM instead of screening	Wastes runs	Screen first
Ignoring curvature until late	Increases rework	Check curvature early
Using ranges that are too wide	Creates poor model fit	Tighten factor limits
Too few center points	Weak variance estimate	Add at least 5 center points
Poor randomization	Introduces bias	Randomize properly

These mistakes create misleading models and false optima.

Real-World RSM Examples Across Industries

1. Semiconductors

Engineers optimize etch depth using gas ratio, chamber pressure, and RF power. RSM reveals that power interacts strongly with gas ratio. The optimized point improves uniformity by 20%.

2. Food Manufacturing

A snack company tunes crispiness using moisture level, bake time, and oil spray rate. RSM finds a combination that boosts crispiness stability and reduces waste.

3. Metal Finishing

A plating process struggles with thickness variation. RSM exposes curvature between temperature and dwell time. The optimized settings increase first-pass yield.

4. Chemical Processing

A catalyst team adjusts reaction temperature, catalyst loading, and agitation. The RSM model shows a peak at moderate catalyst loading. The new settings increase yield by 14%.

5. Healthcare

Clinicians optimize ultrasound settings for pain therapy. Frequency, intensity, and duration interact in complex ways. RSM finds a safe and effective combination.

RSM Example Walkthrough: Finding the Optimum

Here is a full example using three factors.

Problem

A polymer team wants to maximize tensile strength. They study:

• Temperature
• Pressure
• Cooling time

Step 1: Screening

A fractional factorial identifies all three factors as critical.

Step 2: Steepest Ascent

The team increases temperature and pressure along the gradient that boosts strength. They reach a region where strength stops improving.

Step 3: Apply CCD

They collect data using a Central Composite Design.

Step 4: Fit the Quadratic Model

The model reveals:

• Curvature in temperature
• Interaction between pressure and cooling time

Step 5: Optimize

Surface plots show a clear peak. The optimum requires moderate temperature and high pressure.

Step 6: Verify

Strength increases by 18% in confirmation runs.

Best Practices for Successful RSM

Practice	Why It Works
Keep factor ranges realistic	Prevents poor model fit
Use coded units	Simplifies interpretation
Add multiple center points	Strengthens curvature detection
Check residuals	Ensures good model quality
Use contour plots early	Reveals optimization direction
Combine with desirability	Enables multi-objective solutions

These habits create stable, trustworthy models.

How RSM Supports Continuous Improvement

RSM aligns well with Lean Six Sigma. It strengthens the Improve phase of DMAIC. It also helps teams deploy breakthrough improvements with fewer trials. Because RSM produces predictive equations, teams can simulate changes before committing resources.

Here is how RSM supports key continuous improvement goals:

CI Goal	RSM Contribution
Reduce scrap	Provides accurate target settings
Increase throughput	Optimizes cycle variables
Improve quality	Minimizes variation drivers
Lower cost	Reduces trial-and-error work
Speed up development	Narrows the design space quickly

This alignment makes RSM a powerful tool for process-focused organizations.

Conclusion

Response Surface Methodology gives teams a structured way to optimize complex processes. It captures curvature, exposes interactions, and provides predictive models that guide you toward the true optimum. Because of these strengths, RSM outperforms linear designs when processes behave in nonlinear ways.

You get more insight, faster optimization, and stronger decisions backed by data. Engineers, scientists, and quality leaders depend on RSM to drive breakthroughs that simple designs cannot deliver. When you need to push performance, reduce variation, and uncover hidden relationships, RSM gives you the roadmap.
