Histogram in Lean Six Sigma: How to Visualize Process Variation

A histogram is one of the most powerful tools in Lean Six Sigma. It turns raw data into insight, reveals patterns, and exposes variation. Most importantly, it helps teams make data-driven decisions.

If you lead Lean Six Sigma projects, you must know how to build and interpret a histogram. This guide explains everything you need to know. You will learn what a histogram is, why it matters, how to build one, how to interpret shapes, and how to use it in DMAIC projects. You will also see practical examples and tables.

What Is a Histogram?

A histogram is a bar chart that displays the frequency distribution of continuous data. It groups numerical values into ranges, called bins. Then it shows how often values fall within each range.

The concept of the histogram dates back to the work of Karl Pearson in the late 19th century. He formalized the method as a way to visualize distributions. Today, it remains a core statistical tool in quality improvement.

Unlike a basic bar chart, a histogram:

• Displays continuous numerical data
• Uses touching bars
• Shows frequency or relative frequency
• Reveals distribution shape

Because Lean Six Sigma focuses on variation reduction, the histogram plays a central role.

Why Histograms Matter in Lean Six Sigma

Lean eliminates waste. Six Sigma reduces variation. A histogram supports both goals.

Here is why histograms matter:

• They show process spread.
• They reveal central tendency.
• They expose outliers.
• They highlight skewness.
• They identify multimodal behavior.
• They support capability analysis.

In the DMAIC framework, teams often use histograms during the Measure and Analyze phases. However, they also add value during Control.

The American Society for Quality (ASQ) lists the histogram as one of the 7 basic quality tools. Therefore, every Green Belt and Black Belt should master it.

Histogram vs Bar Chart

Many people confuse histograms with bar charts. However, they serve different purposes.

Here is a simple comparison:

Feature	Histogram	Bar Chart
Data Type	Continuous	Categorical
Bar Spacing	No gaps	Gaps between bars
Purpose	Show distribution	Compare categories
X-Axis	Numeric ranges	Categories
Lean Six Sigma Use	Analyze variation	Compare groups

For example, cycle time data belongs in a histogram. On the other hand, defect types belong in a bar chart.

When to Use a Histogram in DMAIC

You should use a histogram whenever you collect continuous/variable data.

Here are common Lean Six Sigma use cases:

• Cycle time analysis
• Lead time studies
• Diameter measurements
• Temperature readings
• Weight measurements
• Service response times

Let’s connect this to DMAIC.

Define Phase

During Define, teams identify CTQs (Critical to Quality characteristics). If those CTQs are measurable and continuous, you will likely use a histogram later.

Measure Phase

Here you collect baseline data. At this stage, you build a histogram to understand:

• Current process distribution
• Mean and spread
• Obvious instability

Analyze Phase

Now the histogram helps you:

• Detect skewness
• Identify special causes
• Spot multiple peaks
• Compare before-and-after states

Improve Phase

After implementing countermeasures, you rebuild the histogram. Then you compare distributions.

Control Phase

Finally, you monitor distribution stability over time.

How to Build a Histogram Step by Step

Let’s walk through a practical example.

Imagine a machining process. The target diameter equals 10.00 mm. The tolerance equals ±0.05 mm.

You collect 50 samples.

Step 1: Collect Data

Example data (partial list):

9.98, 10.01, 10.03, 9.97, 10.02, 9.99, 10.04, 10.00, 9.96…

Step 2: Determine the Range

Suppose:

• Minimum = 9.95
• Maximum = 10.05

Range = 10.05 – 9.95 = 0.10

Step 3: Select Number of Bins

A common rule uses the square root of sample size.

√50 ≈ 7 bins

Step 4: Calculate Bin Width

Bin width = Range ÷ Number of bins
0.10 ÷ 7 ≈ 0.014

You can round to 0.015 for simplicity.

Step 5: Create Frequency Table

Bin Range	Frequency
9.95–9.965	3
9.965–9.98	5
9.98–9.995	10
9.995–10.01	12
10.01–10.025	9
10.025–10.04	7
10.04–10.055	4

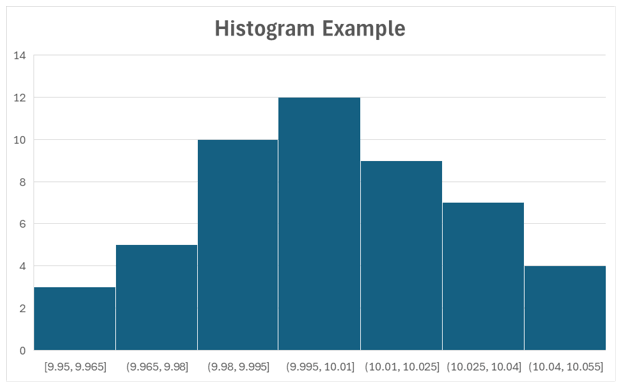

Step 6: Plot the Histogram

Place bins on the x-axis. Place frequency on the y-axis. Bars should touch.

Now you can visually assess process performance.

Understanding Histogram Shapes

Histogram shape tells a story. Therefore, interpretation matters.

Let’s explore common shapes.

Normal Distribution

The normal distribution looks symmetric and bell-shaped. It centers around the mean.

The normal curve relates strongly to the work of William Sealy Gosset and Ronald Fisher, who contributed to statistical theory used in Six Sigma.

If your histogram looks normal:

• The process likely behaves predictably.
• Mean and median align.
• Variation appears consistent.

Most Six Sigma calculations assume normality.

Right-Skewed Distribution

In a right-skewed histogram:

• Tail extends to the right.
• Mean exceeds median.

This pattern often appears in:

• Service response times
• Repair durations
• Lead times

Right skew suggests occasional long delays.

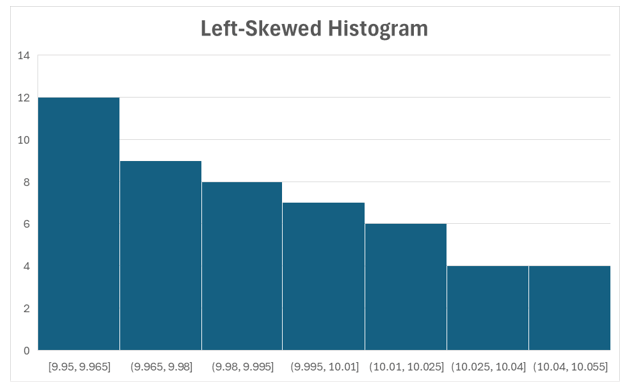

Left-Skewed Distribution

In this case:

• Tail extends to the left.
• Mean falls below median.

This situation may occur when processes hit an upper limit.

Bimodal Distribution

A bimodal histogram shows two peaks.

This pattern often indicates:

• Two machines
• Two operators
• Two shifts
• Mixed materials

Therefore, stratification becomes critical.

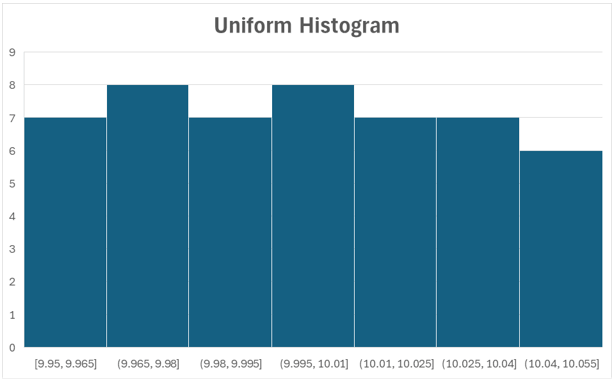

Uniform Distribution

Uniform distributions appear flat.

They often suggest:

• Excessive variation
• Lack of control
• Random behavior

Real Lean Six Sigma Example: Cycle Time Reduction

Consider a packaging line. The team measures cycle time in seconds.

Before Improvement

Range (sec)	Frequency
20–22	3
22–24	6
24–26	7
26–28	7
28–30	9
30–32	11

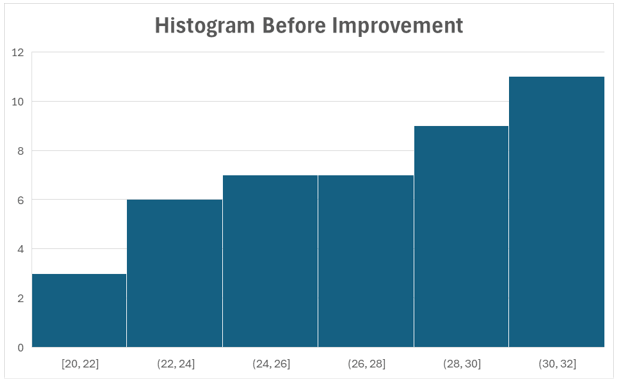

The histogram shows right skew. Some units take much longer.

The team conducts root cause analysis. They discover material jams cause delays.

After Improvement

Range (sec)	Frequency
20–22	2
22–24	6
24–26	15
26–28	12
28–30	5
30–32	3

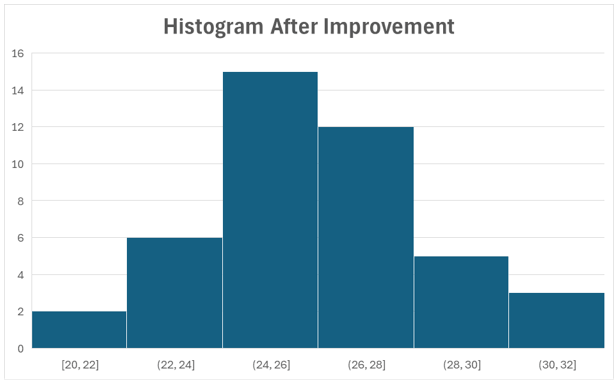

Now the histogram looks tighter and more centered.

Therefore, variation decreased. Mean cycle time improved.

This visual comparison strengthens your project story.

Histograms and Process Capability

A histogram becomes even more powerful when you overlay specification limits.

Key terms for process capability include:

• USL (Upper Specification Limit)
• LSL (Lower Specification Limit)
• Cp
• Cpk

If most bars fall within specs, the process performs well.

However, if bars cross limits, defects occur.

In Lean Six Sigma, teams often combine histograms with capability indices during the Analyze phase.

Choosing the Right Bin Width

Bin width changes interpretation.

If bins are too wide:

• You hide important patterns.

If bins are too narrow:

• You create noise.

Therefore, choose bins carefully.

Common methods include:

• Square root rule
• Sturges’ formula
• Freedman-Diaconis rule

Practical experience also matters.

Stratified Histograms

Sometimes one histogram hides variation sources.

Therefore, stratify data.

Example:

• Machine A
• Machine B

Instead of one combined histogram, create two separate histograms.

If Machine B shows wider spread, you found your root cause.

Stratification aligns strongly with Lean thinking because it helps eliminate hidden waste.

Histogram vs Control Chart

Both histograms and control charts analyze variation. However, they serve different purposes.

Feature	Histogram	Control Chart
Time Order	Not shown	Shown
Purpose	Distribution	Stability over time
Detect Trends	No	Yes
Lean Six Sigma Phase	Measure/Analyze	Control

Use histograms to understand spread. Use control charts to monitor stability.

Common Mistakes When Using Histograms

Many teams misuse histograms. Avoid these errors:

1. Using categorical data
2. Choosing too few bins
3. Ignoring sample size
4. Forgetting stratification
5. Assuming normality without testing
6. Overlooking outliers

Each mistake leads to poor decisions.

Software for Creating Histograms

Most Lean Six Sigma practitioners use software tools.

Popular options include:

• Minitab
• Microsoft Excel
• JMP
• R

Minitab remains common in Six Sigma training. Excel offers accessibility. R provides flexibility.

Example: Service Industry Application

Lean Six Sigma applies beyond manufacturing.

Imagine a hospital emergency department. The team measures patient wait time.

Baseline Histogram Findings

• Mean wait time: 45 minutes
• Right-skewed distribution
• Long tail up to 120 minutes

Root causes include:

• Staffing imbalance
• Bed availability
• Triage delays

After workflow redesign, the histogram shifts left. Variation decreases. Maximum wait drops below 70 minutes.

This example shows how histograms support service improvement.

Linking Histograms to Lean Waste

Variation often creates waste:

• Waiting
• Overprocessing
• Defect
• Excess inventory

When variation shrinks, flow improves.

Therefore, histograms indirectly support:

• One-piece flow
• Takt time alignment
• Reduced buffers

By visualizing variation, teams target waste more effectively.

Advanced Histogram Concepts

Experienced practitioners go further.

Overlaying Normal Curve

You can overlay a normal curve to assess fit.

If bars closely follow the curve, normality likely holds.

Comparing Multiple Histograms

Use side-by-side histograms to compare:

• Before vs after
• Supplier A vs Supplier B
• Shift 1 vs Shift 2

Relative Frequency Histograms

Instead of counts, use percentages. This helps compare different sample sizes.

Histogram in Root Cause Analysis

A histogram alone does not reveal cause. However, it guides investigation.

Example:

You observe bimodality.

Next steps:

• Stratify by shift
• Conduct Gemba observation
• Interview operators
• Analyze machine settings

Thus, the histogram triggers deeper analysis.

Practical Case Study: Paint Thickness Variation

A manufacturing company measures paint thickness in microns.

Specification limits:

• LSL = 45
• USL = 55

Baseline Data Summary

• Mean = 52
• Wide spread
• Several values above USL

Histogram shows right skew.

Root cause analysis reveals:

• Spray pressure inconsistency
• Nozzle wear

After standardizing pressure and replacing nozzles:

• Mean shifts to 50
• Spread narrows
• No values exceed USL

The histogram clearly shows improvement.

How Histograms Support Decision Making

Leaders prefer visual evidence.

A well-designed histogram:

• Simplifies complex data
• Communicates variation clearly
• Builds urgency
• Supports investment decisions

Instead of arguing with numbers, show distribution visually.

Integrating Histograms with Other Six Sigma Tools

Histograms work best with other tools.

For example:

• Pareto chart to identify top defect
• Fishbone diagram to explore causes
• Control chart to monitor stability
• Capability analysis to quantify performance

Combining tools strengthens your DMAIC story.

Key Takeaways for Lean Six Sigma Practitioners

A histogram is not just a chart. It is a decision-making tool.

Remember these principles:

• Always use sufficient sample size.
• Choose bin width carefully.
• Stratify when needed.
• Compare before and after states.
• Link distribution to business impact.

When you reduce variation, you improve flow. When you improve flow, you increase customer satisfaction.

Therefore, mastering the histogram strengthens your Lean Six Sigma capability.

Conclusion

Histograms remain one of the most fundamental tools in Lean Six Sigma. They require minimal effort. Yet they deliver powerful insight.

By visualizing distribution, you uncover hidden variation; by analyzing shape, you detect root causes; and by comparing states, you demonstrate improvement.

Every Green Belt should know how to create one, every Black Belt should know how to interpret one deeply, and every leader should understand what it reveals about process health.

Use histograms consistently. Integrate them into DMAIC. Combine them with capability metrics. Most importantly, use them to drive action.

When you do, you move from data collection to data-driven transformation.
